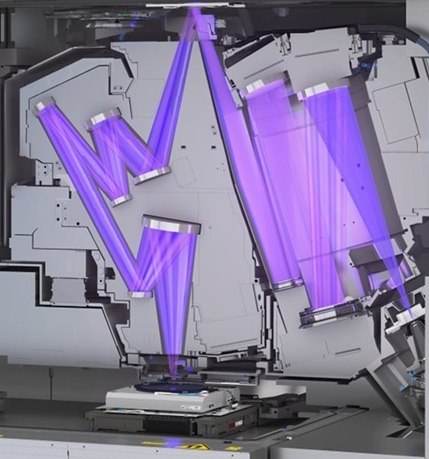

Design, manufacturing and testing of custom linear and rotary motors in markets with strict requirements on performance, accuracy and cleanliness such as semicon, analytical, medical and aerospace.
In demanding applications, custom motors are required due to the need for high performance, high accuracy, thermal requirements, specific form factors or optimized weight. Frencken can design and manufacture these custom motors. We have the engineering knowledge in-house to design or co-develop custom motors and to develop the custom tooling required to manufacture and test these motors. Moreover, we have the required equipment and machinery for custom motor manufacturing.
Understanding both the design and manufacturing sides enables us to find the most optimal motor solution for our customers in terms of motor performance, quality and manufacturing costs. The level of Frencken’s involvement in the development process can be tailored to customer needs.
Examples of motor topologies
- BLDC / PMSM
- Stepper
- Voice coil
- Switched reluctance
- PCB motors
- Axial flux
Design competences

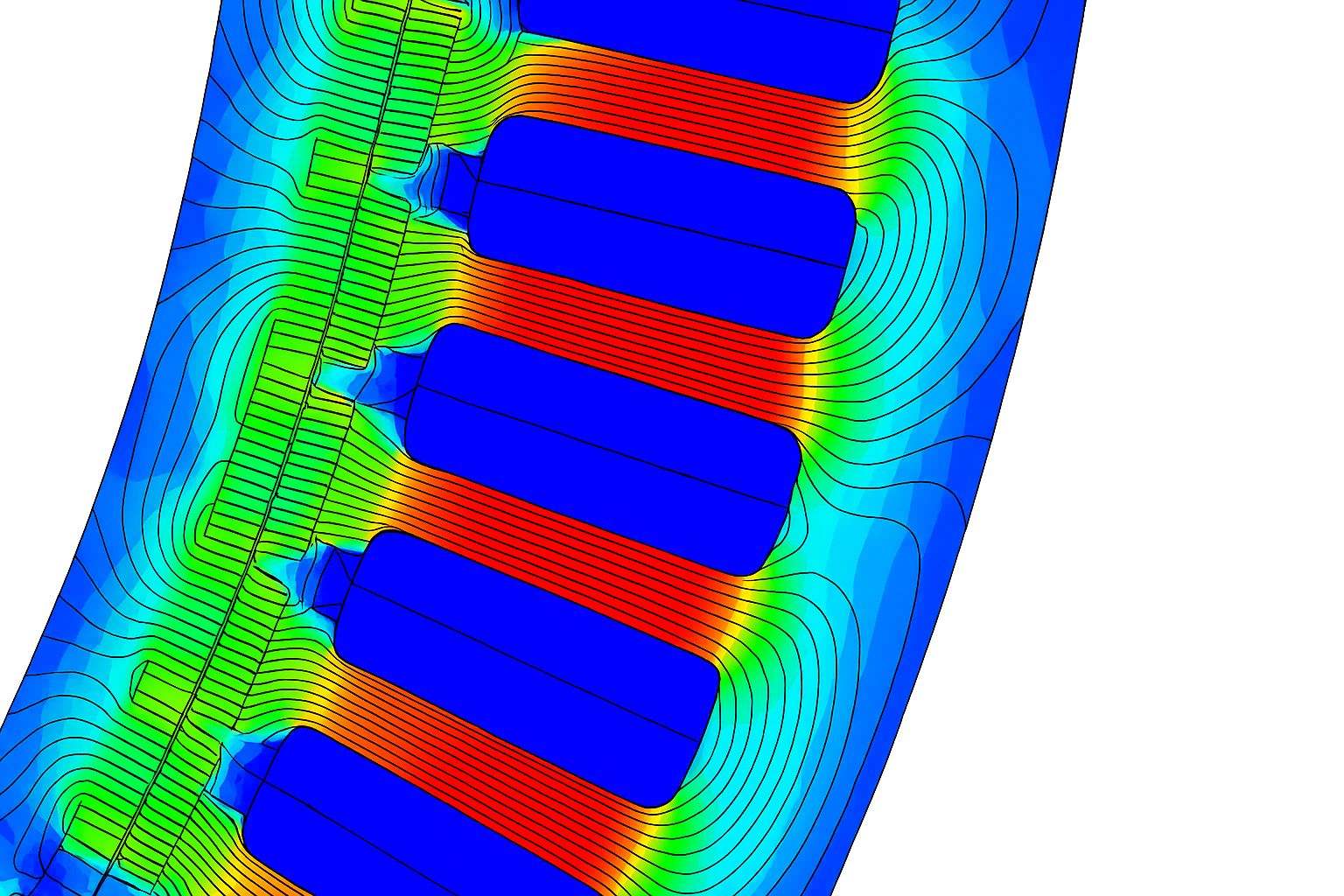

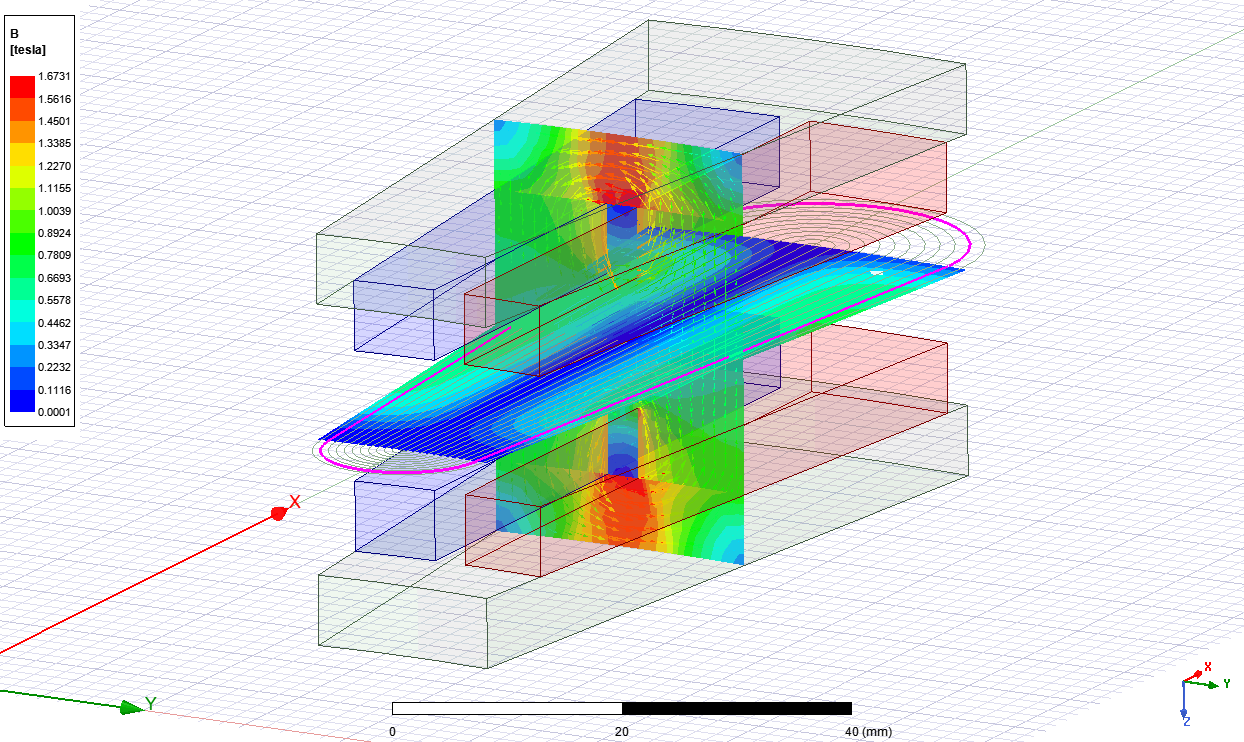

- Electromagnetic and thermal design/analysis
- Detailed motor design and manufacturing tooling design

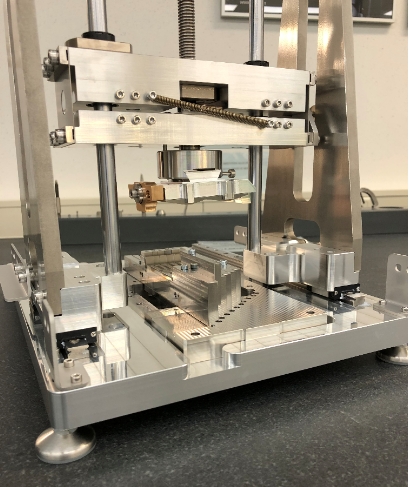

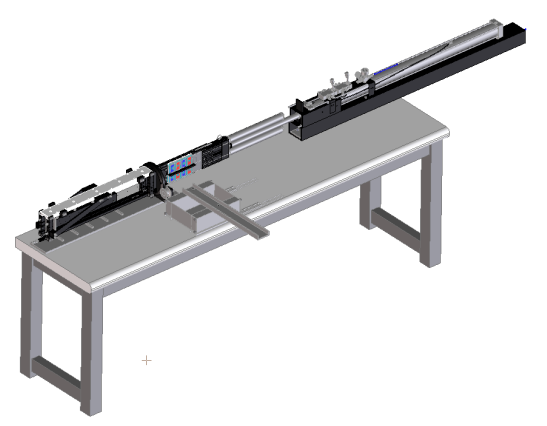

- Motor characterization and environmental test tooling design
- Custom drive and controller electronics design
Manufacturing competences

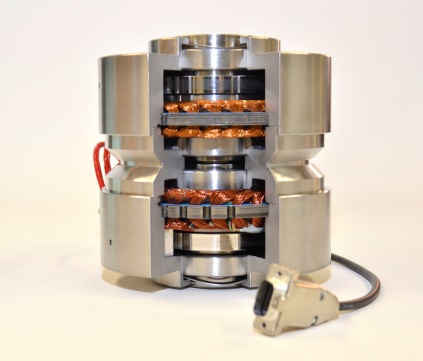

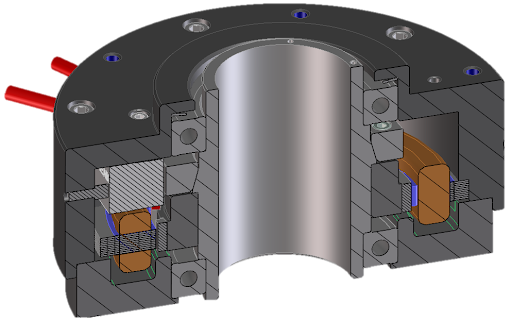

Rotary motor manufacturing capabilities:

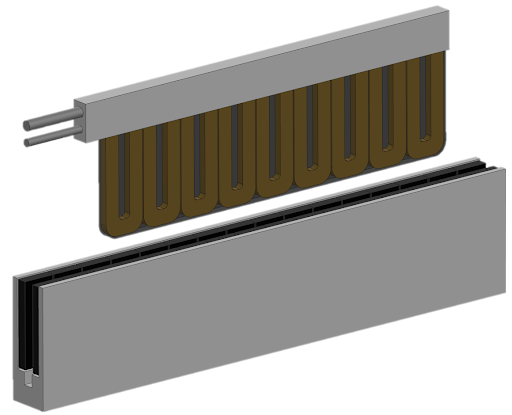

Linear motor manufacturing capabilities:
Rotary motor manufacturing capabilities:
- Housing machining
- Coil winding
- Bearing installment
- Encoder alignment
- Gluing (automated)
- Magnet placement

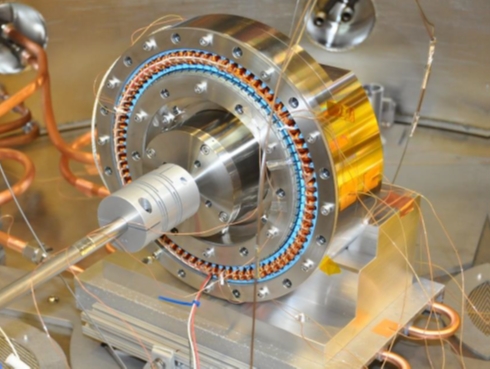

- Motor characterization testing
- Thermal
- Motor constant
- Back EMF
- Resistance
- Dimensional validation (CMM)
- RGA
Rotary motor manufacturing capabilities:
- Housing machining
- Coil winding
- Coil unit potting
- Gluing (automated)

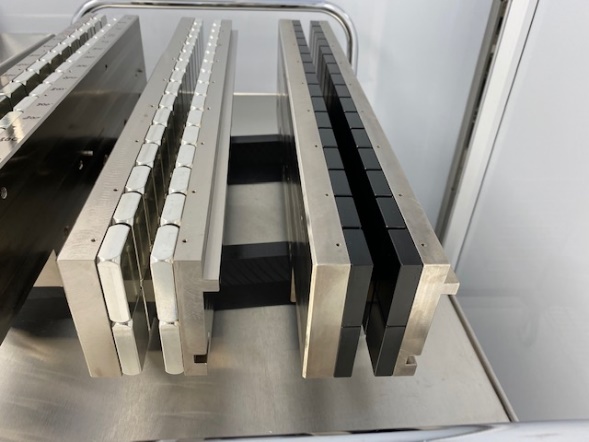

- Magnet placement
- Magnet yoke assembly
- Back iron machining
- Motor characterization testing
- Thermal
- Motor constant
- Back EMF
- Resistance
- Dimensional validation (CMM)
- RGA
Proven track record

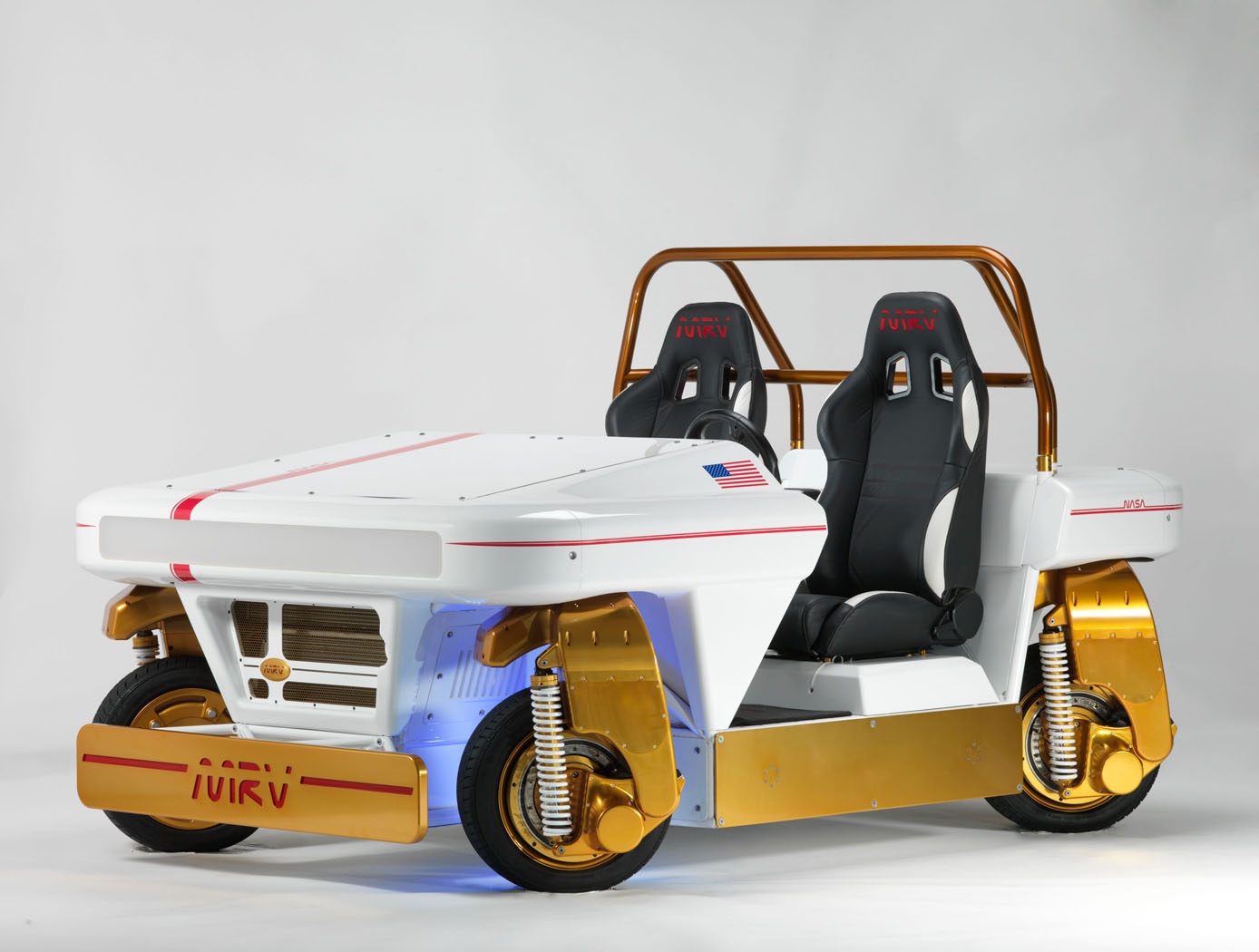

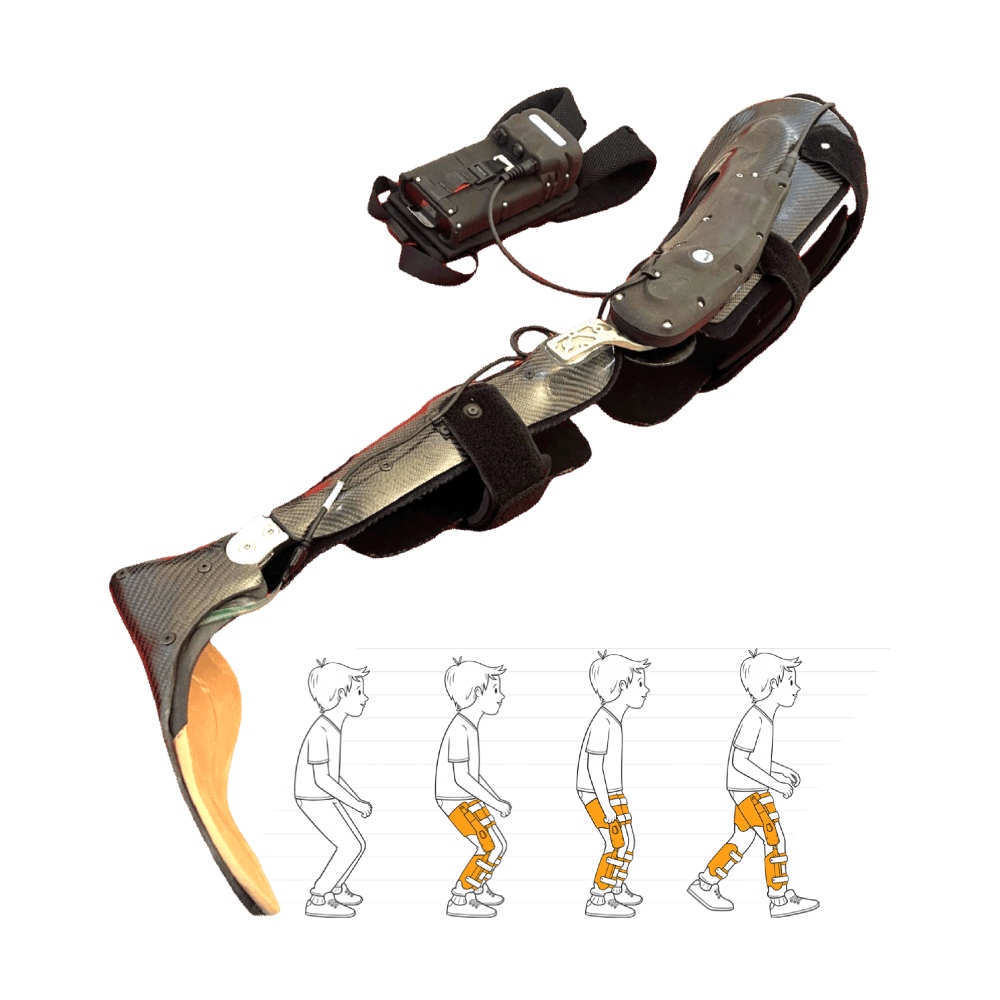

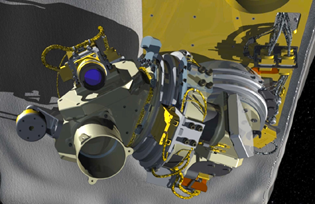

- Frencken’s custom motors are operational in a wide range of applications and markets
- Applications in several different environments
- Extreme temperatures
- Vacuum
- Ultra clean environments
Motor customization at Frencken
- Maximized performance and accuracy
- Halbach arrays
- Integrated cooling
- Motor integrated with mechanics/electronics
- Optimized form factor / volume / weight
- Compatibility with extreme environments
- Manufacturing of eddy loss optimized designs
Contact us to explore opportunities to push the limits of your motion application.
